Beechcraft


Coming MAY 2020

Beechcraft wiring diagram manuals do not list wire lengths like most Cessna WDM's.  It's best to remove your wiring and send to me for replication.  This way we are sure you receive the correct length, wire and lug size.  You may also provide your own measurements.

1979 A-36 Bonanza



Battery wires are red and black M22759/16-2 TEFZEL wire.  Includes MS-20659 heavy duty lugs, except flag terminals at the battery box, with DWP-125 flexible epoxy line heat shrink for insulation support and new post boots.  See gallery for alternator power wire break down.


Battery Positive (2 AWG red, flag terminal) to master solenoid P1A2 - 37”
Battery Ground (2 AWG black, flag terminal) P2A2N - 23”
Start Solenoid (2 AWG) to Starter K3A2 - 26”
Starter Ground (2 AWG black) - 21”
Start Solenoid (2 AWG) to AUX Power Solenoid P1C2 - 19”
AUX Power Solenoid (2 AWG) to AUX Power Receptacle P9A2 - 9”
Alternator Power (4 AWG shielded) P8A4 - 56”
8 AWG Coil Jumper - 6.5”
Shunt (8 AWG) to LDG Throttle Breaker P8B8 - 64”
Shunt (8 AWG) to Taxi Light Breaker P8D8 - 52”
Avionics Bus (8 AWG) P6A8 - 75”
Sub Panel Crossover (8 AWG) P8C8 - 33”


Total cost including shipping will be $400

Cessna 172


172M Power Wire Set $350

Battery Positive - 2 AWG 8"

Battery Ground - 2 AWG 15"

​Engine Ground Braid - 4 AWG 7"

Alternator Power - 8 AWG shielded  80" /heat sleeve

Alternator Ground - 8 AWG 54" /heat sleeve

Battery Relay-Starter Relay - 2 AWG 14"

Starter Relay to Starter - 2 AWG 32" /heat sleeve

Battery Relay-EXT Relay - 2 AWG 15"

EXT Relay- Receptacle - 2 AWG 12"

​AMM-Starter Relay - 8 AWG 66"

AMM-BUS - 8 AWG 40" or 15"(pilot side AMM)


NAS557 Firewall Grommets available upon request.


Wire sets include MIL-C-22759/16 Tefzel copper wire, MS-20659 heavy duty terminals FWD of the firewall environmentally sealed with epoxy lined DWP-125 flame retardant heat shrink and witness holes sealed with Dow Corning 732.,  larger I.D. MS35489-19 grommet for the Cessna 172 battery box, MS25171 post boots and battery relay suppression diode 1N4003 currently used by Cessna encapsulated in clear fluoride based PVDF heat shrink to confirm polarity.  Heat resistant TECHFLEX fiberglass sleeve installed on alternator and starter wiring where routed under the engine.


Optional American made AA59569R30T1125 tin plated 1-1/8" wide copper braid with tin plated ferrules, 1/4” hole and 5/16” hole, 12" center to center with larger I.D. MS35489-19 grommet for the Cessna battery box.  Sleeve is a flame retardant polyolefin heat shrink.  Braid can be doubled for high electrical load requirements.  ADD $20

Cessna 182


182K Power Wire Set $350

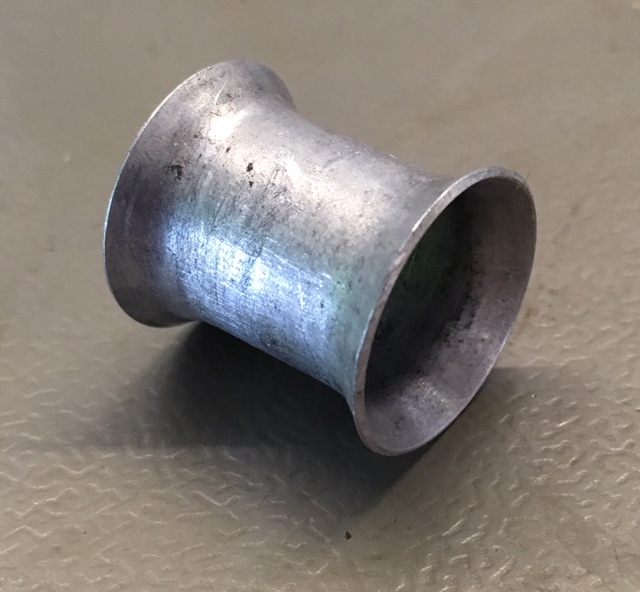

182 firewall feed thru has a fairlead P/N 0713003-74  with a NAS557-8A nylon split grommet.  I can install this ferrule at the start solenoid terminal when supplied by the customer.  Add $140 for new fairlead from Cessna.  NAS557 Firewall Grommets available upon request.


Battery Positive - 2 AWG red 8"

Battery Ground - 2 AWG black 12"

Alternator Power - 8 AWG shielded  56"

Alternator Ground - 8 AWG 22"

Battery Relay-Starter Relay - 2 AWG 180"

Starter Relay to Starter - 2 AWG 10"

​Battery Relay-Ext Relay - 2 AWG 15"

EXT Relay- Receptacle - 2 AWG 12"

​AMM-BUS - 8 AWG 31"

​AMM-Starter Relay - 8 AWG 57"


Add $140 for new fairlead from Cessna.


Wire sets include MIL-C-22759/16 Tefzel copper wire, MS-20659 heavy duty terminals FWD of the firewall environmentally sealed with epoxy lined DWP-125 flame retardant heat shrink and witness holes sealed with Dow Corning 732, MS25171 post boots and battery relay suppression diode 1N4003 currently used by Cessna encapsulated in clear fluoride based PVDF heat shrink to confirm polarity.



Battery Wires


Cessna 152/172

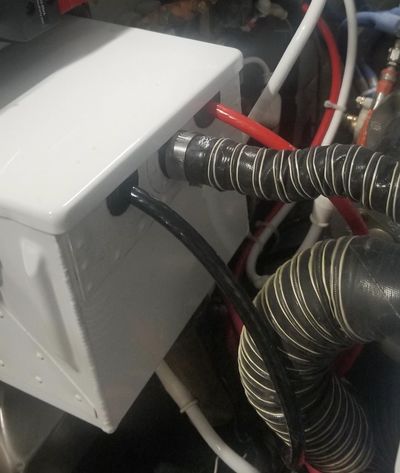

2 AWG battery wire sets include MIL-C-22759 Tefzel wire, MS-20659 heavy duty terminals environmentally sealed with DWP-125 flame retardant heat shrink for insulation support, MS25171 boots, larger I.D. MS35489-19 grommet for the Cessna 172 battery box and solenoid suppression diode 1N4003 encapsulated in clear fluoride based PVDF heat shrink to allow the quick confirmation of polarity.  Boot and grommet lubed with Dow Corning 4.  Terminal witness holes sealed with Dow Corning 732.  Red power is 8", Black ground is 12" or 15".


$80


With optional American made AA59569R30T1125 tin plated 1-1/8" wide copper braid with tin plated ferrules, 1/4” hole and 5/16” hole, 12" center to center with larger I.D. MS35489-19 grommet for the Cessna battery box.  Sleeve is a flame retardant polyolefin heat shrink.


$100 for the set

Cessna 182

2 AWG battery wire sets include MIL-C-22759 Tefzel wire, MS-20659 heavy duty terminals environmentally sealed with DWP-125 flame retardant heat shrink for insulation support, MS25171 boots and solenoid suppression diode 1N4003 encapsulated in clear fluoride based PVDF heat shrink to allow the quick confirmation of polarity.  Terminal witness holes sealed with Dow Corning 732.  Red power is 8", Black ground is 12".

$80

Positive

Red 2 AWG MIL-C-22759 Tefzel wire, MS-20659 heavy duty terminals environmentally sealed with DWP-125 flame retardant heat shrink for insulation support, MS25171 boots, larger I.D. MS35489-19 grommet for the Cessna 172 battery box and solenoid suppression diode 1N4003 encapsulated in clear fluoride based PVDF heat shrink to allow the quick confirmation of polarity.  Boot and grommet lubed with Dow Corning 4.  Terminal witness holes sealed with Dow Corning 732.  8" length.
$50

Grounds

Black 2 AWG MIL-C-22759 Tefzel wire, MS-20659 heavy duty terminals environmentally sealed with DWP-125 flame retardant heat shrink for insulation support, MS25171 boot, larger I.D. MS35489-19 grommet for the Cessna 172 battery box.  Boot and grommet lubed with Dow Corning 4.  Terminal witness holes sealed with Dow Corning 732.  182 is typically 12" and 172 is 15".


$30


American made AA59569R30T1125 tin plated 1-1/8" wide copper braid with tin plated ferrules, 1/4” hole and 5/16” hole, 12" center to center with larger I.D. MS35489-19 grommet for the Cessna battery box.  Sleeve is a flame retardant polyolefin heat shrink.  Braid can be doubled for high electrical load requirements.


$50

See my TIPS page for grounding information!

Beechcraft, Piper and other models available by request

.

Engine Grounds

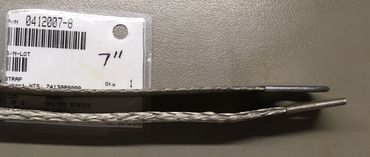

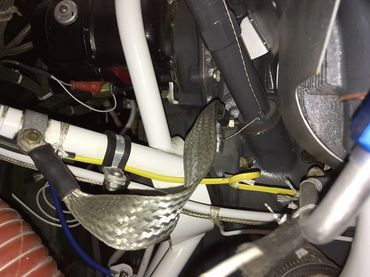

Early 150 and 172 Cessna's terminated the battery ground braid at the nearest engine mount isolator bolt.  By the late 60's the battery ground was moved below the battery to a firewall bracket.  Item 10A is the photo to the left shows ground strap 0412007-8 installed between the engine and engine mount.  Relocating the battery ground and bypassing the engine mount isolator provided a much better ground path for the starter and alternator.  Owners of older models should seriously consider updating to the later model dedicated battery and engine grounds.

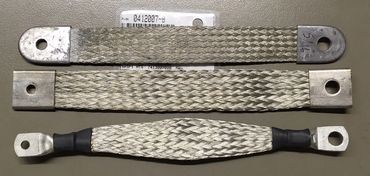

PPH engine ground is American made AA59569R30T0562 tin plated 7/8" wide 4 AWG copper braid with tin plated ferrules or M20659 Burndy YAV lugs with 3/16” hole and 5/16” hole.  Lentgh is approximately 7" center to center.


$25

Beechcraft, Piper and other models available by request.

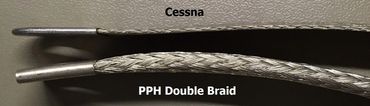

See my TIPS page for grounding information.  I can build whatever your aircraft load requires.  Braids can be doubled for 6 cylinder high electrical load requirements.

Cessna Fuse Assembly Overhaul


Includes all new components, wiring, coating and labelling.


3-4 week turn time to coordinate coating and engraving..


$250

Miscellanious Wires and Harnesses

RF


Antenna Coax Cables

Certified RG 400 coax is available with Amphenol BNC connectors for nav/com and TNC for GPS antennas.  AMP connector substitution by request.  Labels included.


I can solder various coax tray connectors to minimize splices.


RG 400 - $1.75/ft


Straight Plugs(male) BNC and TNC - $12 ea installed.

90 degree BNC - $35 each installed

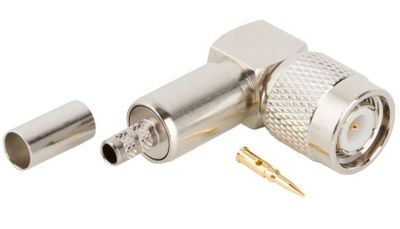

90 degree TNC - $15 each installed

Avionics Harnesses


Stack harnesses are hand tied with each wire group such as audio, lighting, powers and grounds combed out separately to ease installation.  There are cheaper ways to do it, but none more sanitary and organized.  Avionics harness quotes include only wiring and my labor.

I do not build legacy Collins, King or Narco harnesses except KX155.

Connector kits and components of incomplete connector kits will cost extra.

Avoid buying used avionics without the tray and all connector assemblies.

 Buyer Beware: Garmin does not sell their threaded backshell retainer separately.  This is due to customers buying installation kits for competitor slide in replacements of Garmin units.  ITT Cannon M85049/48 style backshells were designed to be attached from the outside.  Garmin's threaded backshell retainer is proprietary and manufactured for Garmin connector screws to attach from inside the trays.  If you buy used Garmin avionics, make sure the seller sends all associated connectors and mounting hardware.

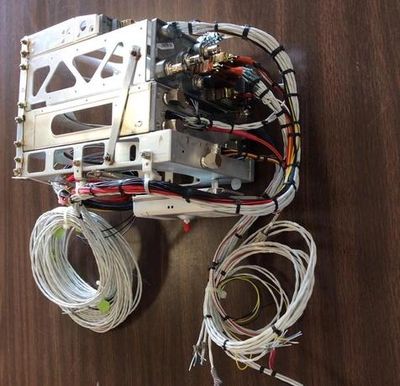

Stack harness with audio panel, dual navigators and transponder - $1500

This approximate estimate of a typical stack includes my labor and wiring only for 4-6 place audio jacks with music soldered, dual NAV indicator break outs and encoder break out.


Add $150 to mount your encoder to your transponder tray.  See gallery below.


Scroll up for RG400 coax pricing.

Connector kits and contacts sourced by me will cost extra.
